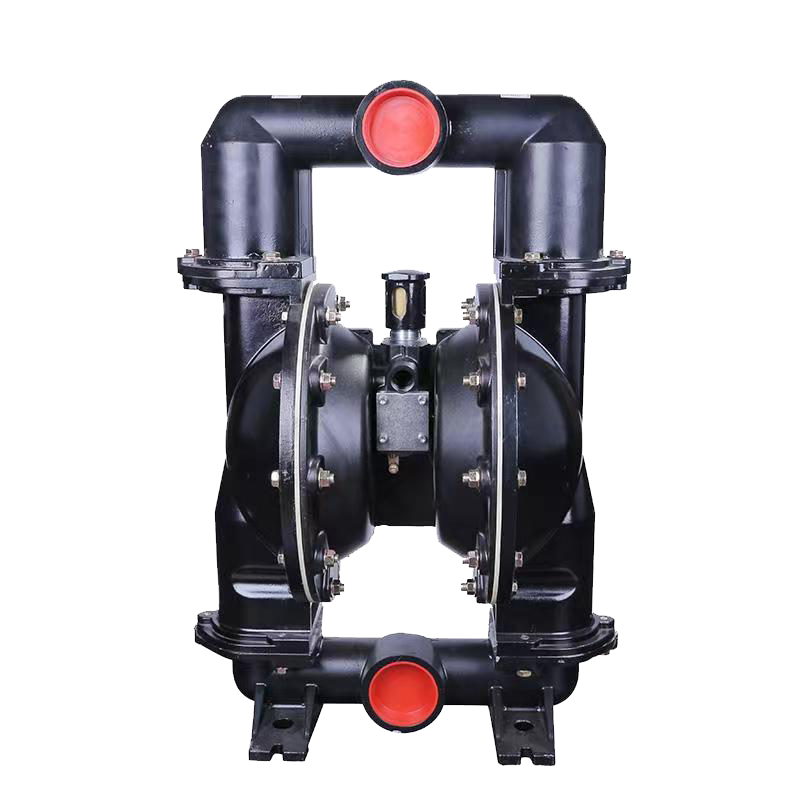

The pneumatic diaphragm pump for mining uses the air flow to push the valve core reciprocating, so that the pressure air alternately enters the left and right air chamber, so that it pushes the diaphragm concave and convex reciprocating motion and produces the pressure difference in the working chamber, to achieve the purpose of water absorption and drainage small size, light weight, no foundation, can be used as a mobile pump, no need for lubrication, the main valve has no special requirements for the air source, and can be self-priming to start running.

The pneumatic diaphragm pump for mining uses the pressure difference in the air chamber to alternately produce the suction liquid pressure and positive liquid pressure in the liquid chamber. After controlling the valve switch to ensure the positive flow of the liquid, the pump starts to run, and continuously works to ensure that the required pressure remains unchanged. The pump will increase and maintain the pressure of the conveying pipe, and when the maximum conveying pipe pressure is reached (or the distributing valve is closed), the pump will increase and maintain the pressure of the conveying pipe. Will stop working and, if needed, resume pumping.

可应用于煤矿，非煤矿山，化工等行业。产品安装、使用方便安全，尤其适用于煤矿等危险爆炸型工作场所，工作安全可靠等特性，在具有可靠的稳定性。

1、海拔高度一般不超过2000m；2、所输送介质温度一般不超40℃；3、介质中固体颗粒含量体积比不超过4%；4、介质中固体颗粒最大粒直径不大于6.4mm；5、水的PH值在6-8范围内  6、 适用于煤矿井下煤尘及甲烷爆炸性气体的危险场所,但无破坏绝缘的腐蚀性气体的场合。
