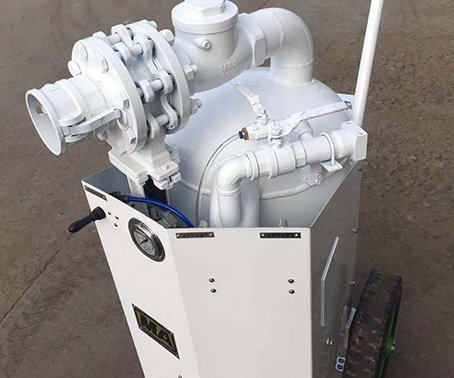

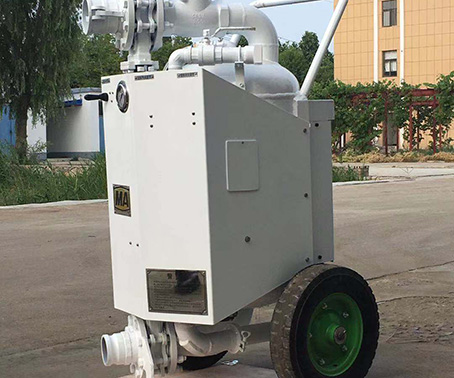

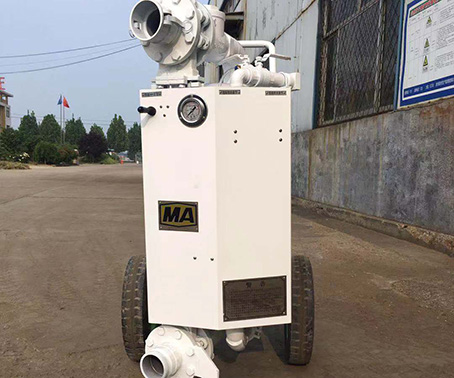

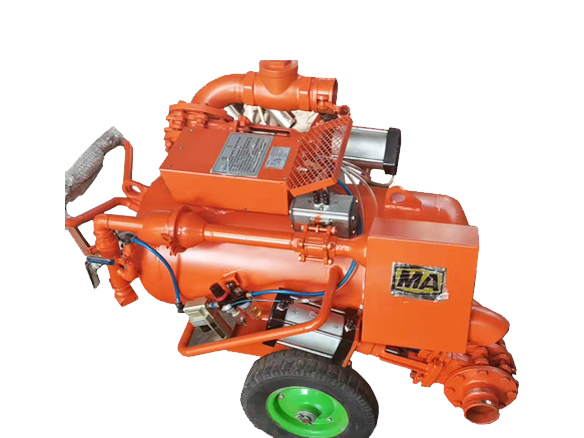

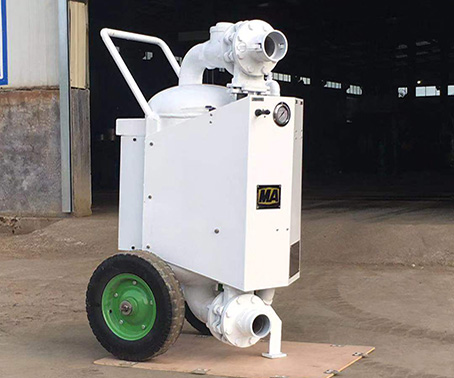

The unit is driven by compressed air, and the main components include the main part, the control system and the vacuum suction assembly. This type of air pump is suitable for cleaning up a large number of coal slime deposited in the water silo of the coal mine. Because there is no reliable equipment to clean up the slime, it not only brings a lot of inconvenience to the normal production of the coal mine, but also causes a great waste of resources. The sewage pump developed by us realizes the efficient and fast treatment of coal slime water mixture in coal mine underground sump, completely eliminates the heavy labor of manual cleaning and digging sump, and reduces the number of newly built underground sump, which not only improves the comprehensive economic benefits of mine water warehouse cleaning and digging, but also realizes environmental management and protection, saving time and effort, and has a wide range of practicability.

该清淤排污泵以压缩空气为动力，适用于含有甲烷煤尘爆炸危险的煤矿井下采掘工作面、巷道、井底污水窝及污水坑（井）、水仓等排水排污作业。

清淤排污泵在下列环境条件下应能正常工作：a) 清淤排污泵吸料管潜入水下，长度不超过8m。 b) 输送介质温度不超过40℃。c) 工作环境温度（0～40）℃。d) 输送介质的PH在6～8范围内。e) 含固体颗粒的最大直径不超过20mm。e) 适用气压范围0.40MPa～0.70MPa。
